viega Pricelist
INDEX
A. Flushing Technology
1) Cisterns
2) WC & Urinal Flush Plates
B. Drainage Technology
1) Drain Fittings for Shower & Bath

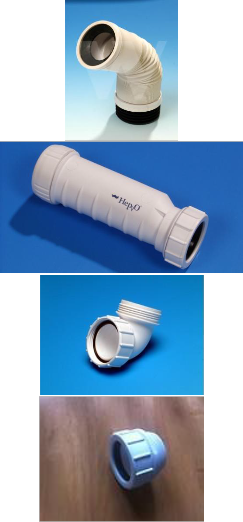

2) Drain Fittings for wash-basins
C. Advantix Floor Drainage

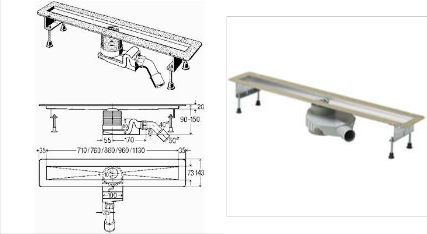

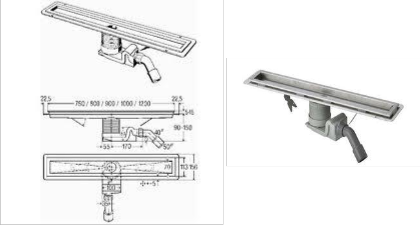

1) Advantix –shower channels
2) Advantix –Corner Traps
3) Bathroom Drains
4) Balcony & Terrace Drains
Flushing Technology
1. Cisterns
2. WC & Urinal flush plates
All prices exclude VAT and subject to Harscan’s terms & conditions
1) CISTERNS | ||||
DIAGRAM | PHOTO | ORDER CODE | DESCRIPTION |
|
| 606732 | Mono-WC-Cover Block/Plastic/Lemon For wall hung WC in 220mm brick wall |
| |
|
| 622220 | Flush cistern/Plastic/Plain For floor standing WC in 220mm brick wall |
|
|
| 648794 | MONO-TEC-WC-FRAME/Steel/Galvanized For Wall hung WC in 110mm brick wall |
|
|
| 606664 | WC-element/Steel / emerald-green for Wall hung WC in dry walling |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
|
| 442439 | Construction set/Plastic / black For Urinals with concealed system for mechanical/infrared release |
|
| 492465 | Urinal Trap/plastic |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
2) WC & Urinal Flush Plates | |||||
DIAGRAM | PHOTO | ORDER CODE | DESCRIPTION |
| |
Accessories Visign FOR MORE | E.g.
| 643096 | Installation frame/ plastic for tile level installations of Visign for More WC-actuating panels (NOT suitable for Visign for more 103) |
| |
Accessories Visign FOR MORE | 643102 | Installation frame/ plastic for tile level installations of Visign for More Urinal-prefabricated sets (NOT suitable for Visign for more 103) |
| ||
Visign FOR MORE 100 WC Dual Flush |
|
| 597436 | Flush plate/aluminum / chrome plated/ manual |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 597443 | Flush plate/aluminum /chrome matt/ manual |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 597450 | Flush plate/aluminum /Stainless steel coloured/ manual |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 597481 | Flush plate/tempered glass/ clear/grey/ manual |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 597498 | Flush plate/tempered glass/ parsol/black/ manual |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 630836 | Flush plate/tempered glass/ clear mint green/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 100 WC Dual Flush |
|
| 622671 | Flush plate/tempered glass/ clear/grey/ 230V (mains) |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 615895 | Flush plate/tempered glass/ parsol/ black / 230V (mains) |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 630775 | Flush plate/tempered glass/ clear mint green/ 230V (mains) |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 630584 | Flush plate/tempered glass/ clear/grey/ 6,5V (battery) |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 630577 | Flush plate/tempered glass/ parsol/ black/ 6,5V (battery) |
|
Visign FOR MORE 100 WC Dual Flush |
|
| 630782 | Flush plate/tempered glass/ clear mint green/ 6,5V (battery) |
|
Visign FOR MORE 100 Urinal Flush |
|
| 599331 | Prefabricated set/ aluminum/ chrome plated/ manual |
|
Visign FOR MORE 100 Urinal Flush |
|
| 599348 | Prefabricated set/ aluminum/ chrome matt/ manual |
|
Visign FOR MORE 100 Urinal Flush |
|
| 599355 | Prefabricated set/ aluminum/stainless steel colour/ manual |
|
Visign FOR MORE 100 Urinal Flush |
|
| 599386 | Prefabricated set/ tempered glass/ clear/grey/ manual |
|
Visign FOR MORE 100 Urinal Flush |
|
| 599393 | Prefabricated set/ tempered glass/parsol/black/ manual |
|
Visign FOR MORE 100 Urinal Flush |
|
| 630928 | Prefabricated set/ tempered glass/mint green/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 100 Urinal Flush |
|
| 610944 | Prefabricated set/ aluminum/chrome plated/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 610951 | Prefabricated set/ aluminum/chrome matt/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 610968 | Prefabricated set/ aluminum/stainless steel colour/9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 610999 | Prefabricated set/ tempered glass/ clear/grey/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611002 | Prefabricated set/ tempered glass/parsol/black/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 630980 | Prefabricated set/ tempered glass/mint green/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611026 | Prefabricated set/ aluminum/chrome plated/ 230V(mains) |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611033 | Prefabricated set/ aluminum/chrome matt/ 230V(mains) |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611040 | Prefabricated set/ aluminum/stainless steel colour/ 230V(mains) |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611071 | Prefabricated set/ tempered glass/ clear/grey/ 230V(mains) |
|
Visign FOR MORE 100 Urinal Flush |
|
| 611088 | Prefabricated set/ tempered glass/parsol/black/ 9V Battery |
|
Visign FOR MORE 100 Urinal Flush |
|
| 631000 | Prefabricated set/ tempered glass/mint green/ 9V Battery |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 101 WC Dual Flush |
|
| 597368 | Flush plate/aluminum / chrome plated/ manual |
| |
Visign FOR MORE 101 WC Dual Flush |
|
| 597375 | Flush plate/aluminum /chrome matt/manual |
| |
Visign FOR MORE 101 WC Dual Flush |
|
| 597382 | Flush plate/aluminum /Stainless steel colour/manual |
| |
Visign FOR MORE 101 WC Dual Flush |
|
| 597412 | Flush plate/tempered glass/ clear/grey/manual |
| |
Visign FOR MORE 101 WC Dual Flush |
|
| 597429 | Flush plate/tempered glass/ parsol/black/manual |
| |
Visign FOR MORE 101 WC Dual Flush |
|
| 630843 | Flush plate/tempered glass/ clear mint green/ manual |
| |
Visign FOR MORE 101 Urinal Flush: For prefabricated sets, matching VISIGN FOR MORE 101 flush plate- select from: VISIGN FOR MORE 100 Urinal Flushing-systems | ||||||
Visign FOR MORE 102 WC Dual Flush |
|
| 597504 | Flush plate/aluminum / chrome plated/ manual |
| |
Visign FOR MORE 102 WC Dual Flush |
|
| 597511 | Flush plate/aluminum /chrome matt/manual |
| |
Visign FOR MORE 102 WC Dual Flush |
|
| 597528 | Flush plate/aluminum /Stainless steel colour/manual |
| |
Visign FOR MORE 102 WC Dual Flush |
|
| 597559 | Flush plate/tempered glass/ clear/grey/manual |
| |
Visign FOR MORE 102 WC Dual Flush |
|
| 597047 | Flush plate/tempered glass/ parsol/black/manual |
| |
Visign FOR MORE 102 WC Dual Flush |
|
| 630850 | Flush plate/tempered glass/ clear mint green/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 102 Urinal Flush |
|
| 599409 | Prefabricated set/ aluminum/ chrome plated/ manual |
|
Visign FOR MORE 102 Urinal Flush |
|
| 599416 | Prefabricated set/ aluminum/ chrome matt/ manual |
|
Visign FOR MORE 102 Urinal Flush |
|
| 599423 | Prefabricated set/ aluminum/stainless steel colour/ manual |
|
Visign FOR MORE 102 Urinal Flush |
|
| 598983 | Prefabricated set/ tempered glass/ clear/grey/ manual |
|
Visign FOR MORE 102 Urinal Flush |
|
| 598990 | Prefabricated set/ tempered glass/parsol/black/ manual |
|
Visign FOR MORE 102 Urinal Flush |
|
| 630935 | Prefabricated set/ tempered glass/mint green/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 605605 | Flush plate/aluminum / chrome plated/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 605612 | Flush plate/aluminum /chrome matt/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 605629 | Flush plate/aluminum /Stainless steel colour/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 605643 | Flush plate/tempered glass/ clear/grey/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 605858 | Flush plate/tempered glass/ parsol/black/ manual |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630874 | Flush plate/tempered glass/ clear mint green/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 103 WC Dual Flush |
|
| 630621 | Flush plate/tempered glass/ clear/grey/ 230V (mains) |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630614 | Flush plate/tempered glass/ parsol/ black / 230V (mains) |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630805 | Flush plate/tempered glass/ clear mint green/ 230V (mains) |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630645 | Flush plate/tempered glass/ clear/grey/ 6,5V (battery) |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630638 | Flush plate/tempered glass/ parsol/ black/ 6,5V (battery) |
|
Visign FOR MORE 103 WC Dual Flush |
|
| 630812 | Flush plate/tempered glass/ clear mint green/ 6,5V (battery) |
|
Visign FOR MORE 103 Urinal Flush |
|
| 605865 | Prefabricated set/ aluminum/ chrome plated/ manual |
|
Visign FOR MORE 103 Urinal Flush |
|
| 605872 | Prefabricated set/ aluminum/ chrome matt/ manual |
|
Visign FOR MORE 103 Urinal Flush |
|
| 605889 | Prefabricated set/ aluminum/stainless steel colour/ manual |
|
Visign FOR MORE 103 Urinal Flush |
|
| 605919 | Prefabricated set/ tempered glass/ clear/grey/ manual |
|
Visign FOR MORE 103 Urinal Flush |
|
| 605926 | Prefabricated set/ tempered glass/parsol/black/ manual |
|
Visign FOR MORE 103 Urinal Flush |
|
| 630942 | Prefabricated set/ tempered glass/mint green/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE urinal flush |
|
| 609764 | Prefabricated set/ aluminum/chrome plated/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 609771 | Prefabricated set/ aluminum/chrome matt/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 609788 | Prefabricated set/ aluminum/stainless steel colour/9V Battery |
|
Visign FOR MORE urinal flush |
|
| 609818 | Prefabricated set/ tempered glass/ clear/grey/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 609825 | Prefabricated set/ tempered glass/parsol/black/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 630997 | Prefabricated set/ tempered glass/mint green/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 609832 | Prefabricated set/ aluminum/chrome plated/ 230V(mains) |
|
Visign FOR MORE urinal flush |
|
| 609849 | Prefabricated set/ aluminum/chrome matt/ 230V(mains) |
|
Visign FOR MORE urinal flush |
|
| 611156 | Prefabricated set/ aluminum/stainless steel colour/ 230V(mains) |
|
Visign FOR MORE urinal flush |
|
| 611194 | Prefabricated set/ tempered glass/ clear/grey/ 230V(mains) |
|
Visign FOR MORE urinal flush |
|
| 611200 | Prefabricated set/ tempered glass/parsol/black/ 9V Battery |
|
Visign FOR MORE urinal flush |
|
| 631017 | Prefabricated set/ tempered glass/mint green/ 9V Battery |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR MORE 104 WC Dula flush |
|
| 598457 | Flush plate/aluminum / chrome plated/ manual |
|
Visign FOR MORE 104 WC Dula flush |
|
| 598464 | Flush plate/aluminum /chrome matt/manual |
|
Visign FOR MORE 104 WC Dula flush |
|
| 598471 | Flush plate/aluminum /Stainless steel colour/manual |
|
Visign FOR MORE 104 Urinal Flush |
|
| 599003 | Prefabricated set/ aluminum/ chrome plated/ manual |
|
Visign FOR MORE 104 Urinal Flush |
|
| 599010 | Prefabricated set/ aluminum/ chrome matt/ manual |
|
Visign FOR MORE 104 Urinal Flush |
|
| 599027 | Prefabricated set/ aluminum/stainless steel colour/ manual |
|
Visign FOR MORE 104 Urinal Flush |
| 605582 | Theft prevention set/plastic for Visign for Style 10, 11 & 12 WC- actuating panels for thief-proof fitting |
| |
Visign FOR MORE 104 Urinal Flush |
| 605599 | Theft prevention set/plastic for Visign for Style 11 & 12 prefabricated sets of urinals for thief-proof fitting |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR STYLE 10 WC Dual Flush |
|
| 596316 | Flush plate/plastic/ polished white/ manual |
| |
Visign FOR STYLE 10 WC Dual Flush |
|
| 596323 | Flush plate/plastic/ chrome plated/ manual |
| |
Visign FOR STYLE 10 WC Dual Flush |
|
| 596347 | Flush plate/plastic /chrome matt/manual |
| |
Visign FOR STYLE 10 WC Dual Flush |
|
| 597054 | Flush plate/plastic/Stainless steel colour/manual | ||
Visign FOR STYLE 10 Urinal Flush: For prefabricated sets, matching VISIGN FOR STYLE 10 flush plate- select from: VISIGN FOR STYLE 13 Urinal Flushing-systems | ||||||
Visign FOR STYLE 11 WC Dual flush |
|
| 597108 | Flush plate/plastic/ polished white/ manual |
| |
Visign FOR STYLE 11 WC Dual flush |
|
| 597115 | Flush plate/plastic/ chrome plated/ manual |
| |
Visign FOR STYLE 11 WC Dual flush |
|
| 597139 | Flush plate/plastic /chrome matt/manual |
| |
Visign FOR STYLE 11 WC Dual flush |
|
| 597146 | Flush plate/plastic/Stainless steel colour/manual |
| |
Visign FOR STYE 11 Urinal Flush |
|
| 598501 | Prefabricated set/ Plastic/ polished white/ manual |
| |
Visign FOR STYE 11 Urinal Flush |
|
| 598518 | Prefabricated set/ Plastic/ chrome plated/ manual |
| |
Visign FOR STYE 11 Urinal Flush |
|
| 598532 | Prefabricated set/ Plastic/ chrome matt/ manual |
| |
Visign FOR STYE 11 Urinal Flush |
|
| 598549 | Prefabricated set/ Plastic/stainless steel colour/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR STYLE 12 WC Dual flush |
|
| 596743 | Flush plate/plastic/ polished white/ manual |
|
Visign FOR STYLE 12 WC Dual flush |
| 597252 | Flush plate/plastic/ chrome plated/ manual |
| |
Visign FOR STYLE 12 WC Dual flush |
|
| 597276 | Flush plate/plastic /chrome matt/manual |
|
Visign FOR STYLE 12 WC Dual flush |
|
| 597283 | Flush plate/plastic/Stainless steel colour/manual |
|
Visign FOR STYLE 12 WC Dual flush |
| 645151 | Flush plate/tempered glass/ clear/grey/manual with tile level installation frame, fixing frame & set |
| |
Visign FOR STYLE 12 WC Dual flush |
|
| 645168 | Flush plate/tempered glass/ parsol/black/manual with tile level installation frame, fixing frame & set |
|
Visign FOR STYLE 12 WC Dual flush |
| 645175 | Flush plate/tempered glass/ clear mint green/ manual with tile level installation frame, fixing frame & set |
| |
Visign FOR STYLE 12 Urinal |
|
| 598747 | Prefabricated set/ Plastic/ polished white/ manual |
|
Visign FOR STYLE 12 Urinal |
|
| 599256 | Prefabricated set/ Plastic/ chrome plated/ manual |
|
Visign FOR STYLE 12 Urinal |
|
| 599270 | Prefabricated set/ Plastic/ chrome matt/ manual |
|
Visign FOR STYLE 12 Urinal |
|
| 599287 | Prefabricated set/ Plastic/stainless steel colour/ manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR STYLE 13 WC Dual flush |
|
| 654498 | Flush plate/plastic/ polished white/ plastic/manual |
|
Visign FOR STYLE 13 WC Dual flush |
|
| 654504 | Flush plate/plastic/ chrome plated/plastic/manual |
|
Visign FOR STYLE 13 WC Dual flush |
|
| 654528 | Flush plate/plastic /chrome matt/plastic/manual |
|
Visign FOR STYLE 13 WC Dual flush |
|
| 654535 | Flush plate/plastic/Stainless steel colour/plastic/manual |
|
Visign FOR STYLE 13 Urinal Flush |
|
| 654771 | Prefabricated set/ Plastic/ polished white/ manual |
|
Visign FOR STYLE 13 Urinal Flush |
|
| 654788 | Prefabricated set/ Plastic/ chrome plated/ manual |
|
Visign FOR STYLE 13 Urinal Flush |
|
| 654801 | Prefabricated set/ Plastic/ chrome matt/ manual |
|
Visign FOR STYLE 13 Urinal Flush |
|
| 654818 | Prefabricated set/ Plastic/stainless steel colour/ manual |
|
Visign FOR STYLE 14 WC Dual flush |
|
| 654689 | Flush plate/plastic/ polished white/ manual |
|
Visign FOR STYLE 14 WC Dual flush |
|
| 654696 | Flush plate/plastic/ chrome plated/ manual |
|
Visign FOR STYLE 14 WC Dual flush |
|
| 654719 | Flush plate/plastic /chrome matt/manual |
|
Visign FOR STYLE 14 WC Dual flush |
|
| 654726 | Flush plate/plastic/Stainless steel colour/manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR STYLE 14 Urinal Flush |
|
| 654566 | Prefabricated set/ Plastic/ polished white/ manual |
| |
Visign FOR STYLE 14 Urinal Flush |
|
| 654573 | Prefabricated set/ Plastic/ chrome plated/ manual |
| |
Visign FOR STYLE 14 Urinal Flush |
|
| 654597 | Prefabricated set/ Plastic/ chrome matt/ manual |
| |
Visign FOR STYLE 14 Urinal Flush |
|
| 654603 | Prefabricated set/ Plastic/stainless steel colour/ manual |
| |
Accesso ries for Visign FOR |
|
422318 | Theft prevention set for Visign for life 1& 2 for thief-proof fitting. |
| ||
Visign FOR LIFE 1 WC dual flush |
| 407452 | Flush Plate/Plastic /polished white/manual |
| ||
Visign FOR LIFE 1 WC dual flush |
| 406912 | Flush Plate/plastic/Chrome plated/manual |
| ||
Visign FOR LIFE 1 WC dual flush |
| 445027 | Flush Plate/plastic/Stainless Steel coloured/manual |
| ||
Visign FOR LIFE 1 WC dual flush |
| 396220 | Flush Plate/plastic/dull chrome matt(small push button is chrome plated)/manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR LIFE 1 Urinal Flush |
| 408800 | Prefabricated set/ Plastic/ polished white/ manual |
| |
Visign FOR LIFE 1 Urinal Flush |
| 448806 | Prefabricated set/ Plastic/ chrome plated/ manual |
| |
Visign FOR LIFE 1 Urinal Flush |
|
| 421700 | Prefabricated set/ Plastic/ chrome matt/ manual |
|
Visign FOR LIFE 1 Urinal Flush |
|
| 494094 | Prefabricated set/ Plastic/ stainless steel coloured/ manual |
|
Visign FOR LIFE 1 Urinal Flush |
| 494100 | Prefabricated set/ Plastic/ polished white/ 9V battery |
| |
Visign FOR LIFE 1 Urinal Flush |
| 476441 | Prefabricated set/ Plastic/ chrome/ 9V battery |
| |
Visign FOR LIFE 1 Urinal Flush |
| 494117 | Prefabricated set/ Plastic/ polished white/ 230V Mains |
| |
Visign FOR LIFE 1 Urinal Flush |
| 476656 | Prefabricated set/ Plastic/ chrome plated/ 230V (mains) |
| |
Visign FOR LIFE 2 WC Dual |
| 463052 | Flush Plate/Plastic /polished white/manual |
| |
Visign FOR LIFE 2 WC Dual |
| 463076 | Flush Plate/plastic/Chrome plated/manual |
| |
Visign FOR LIFE 2 WC Dual |
| 463069 | Flush Plate/plastic/dull chrome matt/manual |
| |
Visign FOR LIFE 2 WC Dual |
| 463090 | Flush Plate/plastic/Stainless Steel coloured/manual |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign FOR LIFE 3 WC Dual Flush |
| 463038 | Flush Plate/Plastic /polished white/manual |
| |
Visign FOR LIFE 3 WC Dual Flush |
| 463854 | Flush Plate/plastic/Chrome plated/manual |
| |
Visign FOR LIFE 3 WC Dual Flush |
| 463045 | Flush Plate/plastic/dull chrome matt/manual |
| |
Visign FOR LIFE 3 WC Dual Flush |
| 463878 | Flush Plate/plastic/Stainless Steel coloured/manual |
| |
Visign FOR PUBLIC WC Flush |
|
| 672058 | Flush plate/Stainless steel/Visign for public 2/ dual flush |
|
Visign FOR PUBLIC WC Flush |
|
| 672065 | Flush plate/Stainless steel/White/ Visign for public2/ dual flush |
|
Visign FOR PUBLIC WC Flush |
| 671839 | Flush plate/Stainless steel/Visign for public 1/ single flush |
| |
Visign FOR PUBLIC WC Flush FOR urinal |
| 671846 | Flush plate/Stainless steel/White/ Visign for public1/ single flush |
| |
FOR urinal |
| 672157 | Prefabricated set/Stainles steel/White/Visign for public urinal |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Disabled Flush |
|
| 688158 | Visign for public remote flush actuator only/ for paraplegic flush/stainless steel |
|
Disabled Flush |
|
| 672072 | Blank cover for cistern in paraplegic toilet/ to be used in conjunction with paraplegic remote flush above. |
|
Viega Hygiene + |
|
| 653828 | Visign for care flushplate sensitive/ non contact/ plastic/white With: controller; fixing frame & set; power unit 230V Adjustable time intervals: 56h, 84h,168h, 336h,672h Adjustable Flush:3l, 4l, 5l, 6l, 7l, 9l |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Drainage Technology
1. Drain Fittings for shower & Bath
2. Drain Fittings for wash- basins
All prices exclude VAT and subject to Harscan’s terms & conditions
1) Drain Fittings for Shower & Bath | |||||
DIAGRAM | PHOTO | ORDER CODE | DESCRIPTION |
| |
|
| 300036 | Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 540 |
| |
|
| 300029 | Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 725 |
| |
|
| 309350 | Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 1070 |
| |
Multiplex Trio Trim sets |
| 306847 | Visign MT 1 Chrome plated operating knob, supply covering & plug to complete the Miltiplex Trio working unit |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
| 490683 | Visign MT 2 Chrome plated operating knob, supply covering & plug to complete the Miltiplex Trio working unit |
| ||
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 606527 | Visign MT 3 For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 540 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 607692 | Visign MT 3 Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 725 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 607708 | Visign MT 3 Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 1070 |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 606534 | Visign MT 4 For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 540 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 607678 | Visign MT 4 Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 725 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 607685 | Visign MT 4 Working unit For water supply through the overflow-body With: supply part; trap, 45°- drain elbow; chrome plated valve Outlet x Bowden cable length: 40/50 x 1070 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 672027 | Drain & Overflow fitting/ Water supply from bottom With: operating knobMT1 & cover plate; rosette RU1; supply part; 45°- drain elbow; concealed-pipe interrupter DN x Bowden cable-L: : 40/50 x 540 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 675462 | Drain & Overflow fitting/ Water supply from bottom With: operating knobMT1 & cover plate; rosette RU1; supply part; 45°- drain elbow; concealed-pipe interrupter DN x Bowden cable-L: : 40/50 x 725 |
|
Multiplex Trio: Inlet, Drain & Overflow fitting for bath |
|
| 675479 | Drain & Overflow fitting/ Water supply from bottom With: operating knobMT1 & cover plate; rosette RU1; supply part; 45°- drain elbow; concealed-pipe interrupter DN x Bowden cable-L: : 40/50 x 1070 |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Multiplex Trio E3 |
|
| 685655 | Two operational controls and display, electronic mixing fitting with one chromed operational control with glass surface for temperature display and pushing function for task selecting for an electronical controlled filling of a bath tub, with storage function for temperature, quantity inflow of water and filling height, 3 presettings defineable, manual changing function bathtub spout/handshower, electrical opening/closing function of plug. |
|
Drain & Overflow fittings for bath |
| 572853 | Drain & overflow fitting/white/plastic With: click closing technology, overflow rosette, trap & 45°-drain elbow Outlet: 40/50 |
| |
Drain & Overflow fittings for bath |
| 106812 | Drain & overflow fitting/white/plastic With: stainless steel rosette & plug; trap & drain Connection x outlet: 1 ½ x 40 |
| |
Tempoplex drain fitting for shower |
| 575601 | Drain fitting/white/plastic With: removable trap, chrome plated cover plate, 90mm waste holeϴ for flat shower trays Plateϴ x outlet: 115 x 40/50 |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
2) Drain Fittings for Wash Basins | |||||
Drain fittings for wash-basins |
| 553753 | Space saving/disabled trap/chrome plated/plastic With: concealed pre-wall installation; coverplate; horisontal waste & outflow bend |
| |
Drain fittings for wash-basins |
|
| 553760 | Space saving/disabled trap/white/plastic With: concealed pre-wall installation; coverplate; horisontal waste & outflow bend |
|
Drain fittings for wash-basins |
| 100674 | Bottle Trap/DZR Brass/ chrome plated With: universal drain of stainless steel; Cup 50mm. Connection x Outlet: 1 ¼ x 1 ¼ |
| |
Drain fittings for wash-basins |
|
| 309312 | Bottle Trap/white/plastic With: universal drain of stainless steel; plug & chain Cup 50mm. Connection x Outlet: 1 ¼ x 1 ½ |
|
Drain fittings for wash-basins |
|
| 137182 | Bottle Trap/white/plastic With: universal drain of stainless steel; plug & chain Cup 50mm. Connection x Outlet: 1 ½ x 1 ½ |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Advantix Floor Drain age
1. Advantix-Shower Channels
2. Advantix-Corner Traps
3. Bathroom Drains
4. Balcony & Terrace Drains
All prices exclude VAT and subject to Harscan’s terms & conditions
Advantix– Shower Channels | |||||
DIAGRAM | PHOTO | ORDER CODE | DESCRIPTION | ||
Advantix Vario |
| 686277 | Advantix Vario-floor channel base body/ continuously from 300 to 1200 mm shower drain cut to length of high quality plastic/Height 95 to 165 mm, With: caps and adjustable bridge grate fitting; mounting feet;self-cleaning and waste removable mud; height adjustment piece; sealing and sealing equipment for the use of liquid films or Flexible sheets (eg KERDI) in the waterproofing. AND Visign SR1 footbridge, 300 - 1200, with mounting accessories and Caps with a matte finish Capacities: drainage 0.4 to 0.8 l/s |
| |
Advantix Vario |
| 686284 | Visign SR1 footbridge, 300 - 1200, with mounting accessories and Caps with a matte finish |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Channel Basic Unit without surround | 655082 | Basic Unit/ made of Stainless Steel/ NO SURROUND 750mm With: height adjusting feet 90-150mm; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| |
Channel Basic Unit without surround | 655099 | Basic Unit/ made of Stainless Steel/ NO SURROUND 800mm With: height adjusting feet 90-150mm; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| |
Channel Basic Unit without surround | 655105 | Basic Unit/ made of Stainless Steel/ NO SURROUND 900mm With: height adjusting feet 90-150mm; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| |
Channel Basic Unit without surround | 655112 | Basic Unit/ made of Stainless Steel/ NO SURROUND 1000mm With: height adjusting feet 90-150mm; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| |
Channel Basic Unit without surround |
655129 | Basic Unit/ made of Stainless Steel/ NO SURROUND 1200mm With: height adjusting feet 90-150mm; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Channel Basic Unit with Surround | 618001 | Basic Unit/ made of Stainless Steel/ WITH SURROUND 750mm With: height adjusting feet 90-150mm & grate frame; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| ||
Channel Basic Unit with Surround | 618018 | Basic Unit/ made of Stainless Steel/ WITH SURROUND 800mm With: height adjusting feet 90-150mm & grate frame; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| ||
Channel Basic Unit with Surround | 618025 | Basic Unit/ made of Stainless Steel/ WITH SURROUND 900mm With: height adjusting feet 90-150mm & grate frame; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| ||
Channel Basic Unit with Surround | 618032 | Basic Unit/ made of Stainless Steel/ WITH SURROUND 1000mm With: height adjusting feet 90-150mm & grate frame; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| ||
Channel Basic Unit with Surround | 618049 | Basic Unit/ made of Stainless Steel/ WITH SURROUND 1200mm With: height adjusting feet 90-150mm & grate frame; trap, removable dirt trap; sealing flange CAPASITIES: drainage 0.5l – 0.7l/s Loading: 300kg |
| ||
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign Shower Cannel ER Grates |
|
| 570422 | ER1 Grate/ Made of Stainless steel 750mm |
|
Visign Shower Cannel ER Grates |
|
| 570439 | ER1 Grate/ Made of Stainless steel 800mm |
|
Visign Shower Cannel ER Grates |
|
| 570446 | ER1 Grate / Made of Stainless steel 900mm |
|
Visign Shower Cannel ER Grates |
|
| 571450 | ER1 Grate/ Made of Stainless steel 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 571467 | ER1 Grate/ Made of Stainless steel 1200mm |
|
Visign Shower Cannel ER Grates |
|
| 571474 | ER2 Grate/ Made of Stainless steel 750mm |
|
Visign Shower Cannel ER Grates |
|
| 571481 | ER2 Grate/ Made of Stainless steel 800mm |
|
Visign Shower Cannel ER Grates |
|
| 571498 | ER2 Grate / Made of Stainless steel 900mm |
|
Visign Shower Cannel ER Grates |
|
| 571504 | ER2Grate/ Made of Stainless steel 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 571511 | ER2 Grate/ Made of Stainless steel 1200mm |
|
Visign Shower Cannel ER Grates |
|
| 589462 | ER3 Grate/ Made of Stainless steel 750mm |
|
Visign Shower Cannel ER Grates |
|
| 589479 | ER3 Grate/ Made of Stainless steel 800mm |
|
Visign Shower Cannel ER Grates |
|
| 589486 | ER3 Grate / Made of Stainless steel 900mm |
|
Visign Shower Cannel ER Grates |
|
| 589493 | ER3Grate/ Made of Stainless steel 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 589509 | ER3 Grate/ Made of Stainless steel 1200m |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign Shower Cannel ER Grates |
|
| 589561 | ER4 Grate/ Made of Stainless steel/ For insert up to 1cmthick tile or natural stone750mm |
|
Visign Shower Cannel ER Grates |
|
| 589578 | ER4 Grate/ Made of Stainless steel/ For insert up to 1cmthick tile or natural stone 800mm |
|
Visign Shower Cannel ER Grates |
|
| 589585 | ER4 Grate / Made of Stainless steel/ For insert up to 1cmthick tile or natural stone 900mm |
|
Visign Shower Cannel ER Grates |
|
| 589592 | ER4 Grate/ Made of Stainless steel/ For insert up to 1cmthick tile or natural stone 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 589608 | ER4 Grate/ Made of Stainless steel/ For insert up to 1cmthick tile or natural stone 1200mm |
|
Visign Shower Cannel ER Grates |
|
| 616922 | ER9 Grate/made of Tempered Glass with square stainless steel element/Clear/light grey 750mm |
|
Visign Shower Cannel ER Grates |
|
| 616939 | ER9 Grate/made of Tempered Glass with square stainless steel element/Clear/light grey 800mm |
|
Visign Shower Cannel ER Grates |
|
| 616946 | ER9 Grate/made of Tempered Glass with square stainless steel element/Clear/light grey 900mm |
|
Visign Shower Cannel ER Grates |
|
| 617059 | ER9 Grate/made of Tempered Glass with square stainless steel element/Clear/light grey 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 617066 | ER9 Grate/made of Tempered Glass with square stainless steel element/Clear/light grey 1200mm |
|
Visign Shower Cannel ER Grates |
|
| 617073 | ER9 Grate/made of Tempered Glass with square stainless steel element/clear/black 750mm |
|
Visign Shower Cannel ER Grates |
|
| 617080 | ER9 Grate/made of Tempered Glass with square stainless steel element/clear/black 800mm |
|
Visign Shower Cannel ER Grates |
|
| 617097 | ER9 Grate/made of Tempered Glass with square stainless steel element/clear/black 900mm |
|
Visign Shower Cannel ER Grates |
|
| 617103 | ER9 Grate/made of Tempered Glass with square stainless steel element/clear/black 1000mm |
|
Visign Shower Cannel ER Grates |
|
| 617110 | ER9 Grate/made of Tempered Glass with square stainless steel element/clear/black 1200mm |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
2) Advantix – Corner drains | |||||
3)Bathroom Drains | |||||
Standard Drain |
| 557119 | Floor trap/Grey/Plastic/Flat model With: sealing flange; removable trap; rotatable & height adjustable top: 100x100; plastic frame; stainless steel grate; horizontal & adjustable drain socket Drain Capacity: 0.6l/s Loading Capacity:300kg |
| |
Square Top |
| 488987 | Top Frame/Stainless Steel frame With: place for grates 94 x 94mm / 143 x 143; back pressure seal |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Visign RS Square Grates | 492281 | RS1 Grate/solid Stainless Steel:LxBxH: 94 x 94 x 5 With: Lasered inflow design; matt; suitable for top frame 488987 |
| ||
Visign RS Square Grates | 492298 | RS2 Grate/solid Stainless Steel:LxBxH: 94 x 94 x 5 With: Lasered inflow design; matt; suitable for top frame 488987 |
| ||
Visign RS Square Grates |
|
| 492304 | RS3 Grate/solid Stainless Steel:LxBxH: 94 x 94 x 5 With: Lasered inflow design; matt; suitable for top frame 488987 |
|
Visign RS Square Grates |
|
| 492311 | RS4 Grate/solid Stainless Steel:LxBxH: 94 x 94 x 5 With: Lasered inflow design; matt; suitable for top frame 488987 |
|
Visign RS Square Grates |
|
| 617127 | RS5 Grate made of tempered Glass/clear/light grey With: Stainless Steel centre disc, suitable for for top frame 488987 |
|
Visign RS Square Grates |
|
| 617141 | RS5 Grate made of tempered Glass/clear/black With: Stainless Steel centre disc, suitable for for top frame 488987 |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Round Top |
| 586416 | Top Frame/Stainless Steel frame With: place for round grates: ϴ 110mm |
| |
Visign RS Round Grates |
|
| 586423 | RS11 Grate/solid Stainless Steel:ϴ x thickness: 110 x 5 With: Lasered inflow design; matt; suitable for top frame 586416 |
|
Visign RS Round Grates |
|
| 586430 | RS12 Grate/solid Stainless Steel:ϴ x thickness: 110 x 5 With: Lasered inflow design; matt; suitable for top frame 586416 |
|
Visign RS Round Grates |
|
| 586447 | RS13 Grate/solid Stainless Steel:ϴ x thickness: 110 x 5 With: Lasered inflow design; matt; suitable for top frame 586416 |
|
Visign RS Round Grates |
|
| 586652 | RS14 Grate/solid Stainless Steel:ϴ x thickness: 110 x 5 With: Lasered inflow design; matt; suitable for top frame 586416 |
|
Visign RS Round Grates |
|
| 617165 | RS15 Grate/ tempered glass:ϴ x thickness: 110 x 5 With: Stainless Steel centre disc; suitable for top frame 586416 |
|
Visign RS Round Grates |
|
| 617189 | RS15 Grate/ tempered glass:ϴ x thickness: 110 x 5 With: Stainless Steel centre disc; suitable for top frame 586416 |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
4) Balcony & Terrace Drains | |||||
Full Bore |
| 289386 | Full bore drain/Grey/Plastic/DN70 With: sand catcher; protection plug, horizontal drain socket Without trap Loading capacity class H=150kg |
| |
Full Bore |
|
| 289409 | Full bore drain/Grey/Plastic/DN70 With: sand catcher; protection plug, vertical drain socket Without trap Loading capacity class H=150kg |
|
Full Bore |
|
| 626990 | Full bore drain/Grey/Plastic/DN100 With: sand catcher; protection plug, vertical drain socket Without trap Loading capacity class H=150kg |
|
Full Bore |
|
| Full bore drain/Grey/Plastic/DN100 With: sand catcher; protection plug, vertical drain socket Without trap Loading capacity class H=150kg |
| |
HRE110 | Hepworth Black Plastidrain 110mm Rodding Point | R310.00 | |||
All prices exclude VAT and subject to Harscan’s terms & conditions
S171 | Flexible Pan Connector 110mm |
| |
BV1A/S WH | HepVo waterless Waste Valve 1 1/4" & |
| |
BV1B/S WH | HepVo waterless Waste Valve 1 1/2" |
| |
CV1/M WH | HepVo waterless Waste Valve 11/2"x40mm |
| |
BV11 WH | HepVo 87.5 Deg Knuckle Adap 32mm |
| |
CV11 WH | HepVo 87.5 Deg Knuckle Adap 40mm |
| |
CV3/M WH | HepVo Inline Male Adaptor 40mm |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Balcony |
|
| 557089 | Full bore drain/Grey/Plastic/DN70 With: sealing flange; protection plug; rotatable & height adjustable top: 100x100; plastic frame; stainless steel grate; horizontal & adjustable drain socket Without Trap Loading Capacity:300kg |
|
Balcony |
|
| 557102 | Full bore drain/Grey/Plastic/DN70 With: sealing flange; protection plug; rotatable & height adjustable top: 100x100; plastic frame; stainless steel grate; vertical drain socket Without Trap Loading Capacity:300kg |
|
Balcony |
|
| 626983 | Full bore drain/Grey/Plastic/DN100 With: sealing flange; protection plug; rotatable & height adjustable top: 100x100; plastic frame; stainless steel grate; vertical drain socket Without Trap Loading Capacity:300kg |
|
Cellar |
| 148607 | Kellermeister - Cellar drain/Black drain/ grey grate With: rotatable top: 150 x 150mm; sump Without: trap Capacities: Drain: 4.5l/s; Loading: 300kg |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
Steptec
Only for dry walling
All prices exclude VAT and subject to Harscan’s terms & conditions
VIEGA STEPTEC | ||||
DIAGRAM | PHOTO | ORDER CODE | DESCRIPTION |
|
| 471781 | Steptec-C profile, for partial-high and room-high pre-wall and partition wall constructions, 40 x 40 mm, all 30 cm elongated hole continuously pre-punched for fixing to wall, floor or ceiling, made of galvanized steel, |
| |
|
| 471545 | Steptec-Complete package, related to the planked surface, completely for building a partial-high or room-high partition- or pre-wall construction with: Steptec connectors made of galvanized steel, for connection of Steptec-C profiles in 45° - or 90° - impacts, fixing material for wall, floor or ceiling mounting of the Steptec-C profiles, compensation material for uneven walls, self tapping screws for facing tile |
|
|
| 471750 | Steptec-Complete package, related to the planked surface, completely for building a partial-high or room-high partition- or pre-wall construction with: Steptec connectors made of galvanized steel, for connection of Steptec-C profiles in 45° - or 90° - impacts, fixing material for wall, floor or ceiling mounting of the Steptec-C profiles, compensation material for uneven walls, self tapping screws for facing tile |
|
|
| 471767 | Steptec-Complete package, related to the planked surface, completely for building a partial-high or room-high partition- or pre-wall construction with: Steptec connectors made of galvanized steel, for connection of Steptec-C profiles in 45° - or 90° - impacts, fixing material for wall, floor or ceiling mounting of the Steptec-C profiles, compensation material for uneven walls, self tapping screws for facing tile |
|
|
| 471774 | Steptec-Complete package, related to the planked surface, completely for building a partial-high or room-high partition- or pre-wall construction with: Steptec connectors made of galvanized steel, for connection of Steptec-C profiles in 45° - or 90° - impacts, fixing material for wall, floor or ceiling mounting of the Steptec-C profiles, compensation material for uneven walls, self tapping screws for facing tile |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
|
| 471798 | Steptec-Connector, for the connection of Steptec-rails in 45° - or 90° - impacts by clamping, with thread for uncoupling of pipe clamps or for depth adjustment of the wall construction with commercial threaded rod, completely pre-mounted, made of steel, galvanized, |
|
| 611347 | Steptec-Fixing set, Fixing accessories for the wall-, floor- or ceiling fixation of Steptec profiles, with: 10 screws with collar, 10 dowls and compensation material, |
| |
| 485061 | Steptec-Wall elbow, for wall connection of pre-fabricated Steptec-walls |
| |
| 471804 | Steptec-Articulation, for the continuous angular adjustment from 0° to 180°, usable for fixing of rails to roof slopes, made of steel, galvanized. |
|
All prices exclude VAT and subject to Harscan’s terms & conditions
For more information:
Malcolm: 082 600 6566 malcolm@harscan.co.za Johann: 083 607 4110 johann@harscan.co.za Ana: 011 787 2993 sales@harscan.co.za
Dale: 072 324 8717 dale@harscan.co.za
Prices are affected from the 1st of January 2014
All prices exclude VAT and subject to Harscan’s terms & conditions
